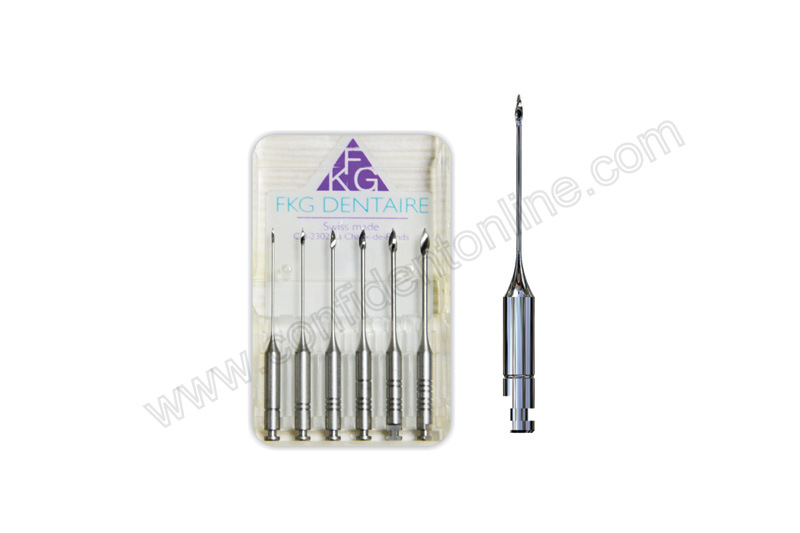

Description :

Gates instruments are reamers used to widen and straighten the coronary part of the canals, allowing better access for shaping instruments. Their use is strictly limited to the straight portion of the canals

The risk of perforation is significant if these instruments are used in a curved canal or when cutting laterally

Gates instruments are oval shaped, with a guiding rounded safety tip and sharp cutting edges

Description :

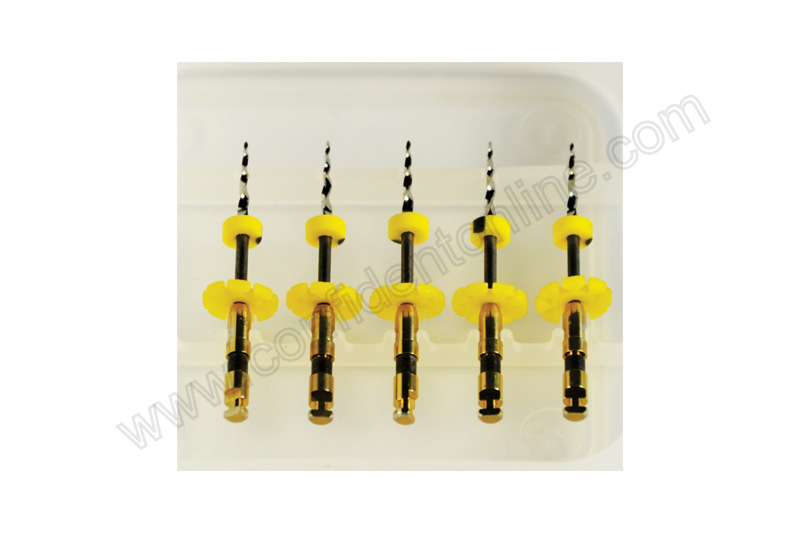

Pre race available in steel or NiTi the pre race files allow a side to side milling motion, without being too invasive or risking performation. They are used in the coronary and staright part of the canal to remove interrances and to facilitate access to the canal.

Features :

The pre race files ensure the same operation as the gates and peeso, but more safety thanks to their anti screwing in design rounded safety tip and larger taper.

Description :

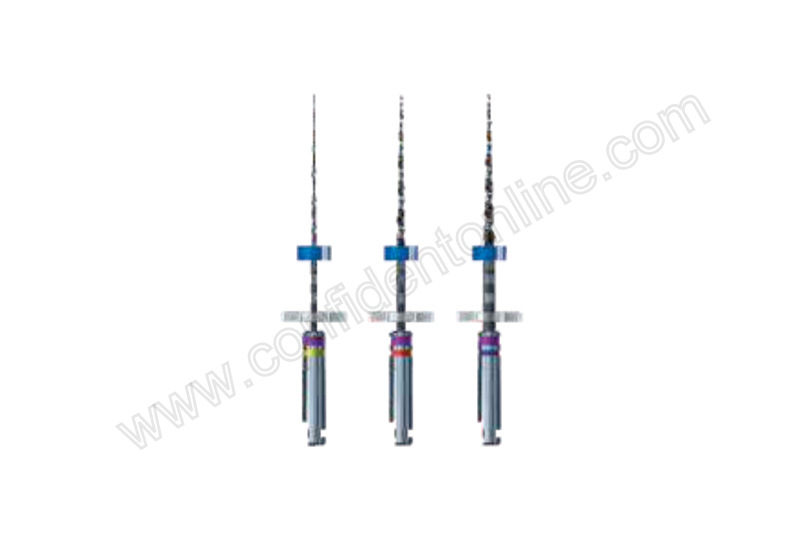

Three instruments make up the Race ISO 10 range, all with a size of ISO 10 and with .02, .04 and .06 taper. They are intended for reaching the Working Length when hand ISO 6 or 8 K-Files can no longer advance in calcified or very narrow canals.

Features :

The pre race files ensure the same operation as the gates and peeso, but more safety thanks to their anti screwing in design rounded safety tip and larger taper.

Product Code :	0170000SCZFK
Price (Incl. of Tax) :	801
Package Contents :	1 Set : TAPER 6% + 4% + 2%, ISO-10, 25 MM (Set of 3 files)
Min Order :	10 Set
Available Qty :	250
	801 801 FKG Race ISO 10 Add to Quote

Description :

In Steel or NiTi, the standard ISO sizes 6 to 40 in hand endodontic files have a rounded safety tip which is an exclusive FKG feature and also have an ergonomic handle, the SafetymemoGrip (SMG). Thanks to its larger rear diameter, the  ergonomic handle offers a better grip. Situated on the end of the handle, there is an 8 segmented use indicator. After each treatment, asegment is scratched thus preserving information concerning the number of cycles of use and sterilisation. When all segments are scratched the instrument is discarded. The hand files are also available with the Ergofl ex handle. Its particular ergonomics, rounded section followed by a flat section, facilitate gripping when filing and prevent rotation above 180°.

Description :

These instruments are nickle titanium instruments, have under gone special treatment to make them controlled meomory ( No rebound).

Features :

• This instrument reduce transportation,ledging perforation and straightning of canal to the obsolute minimum.
• They are also superior in resistance to breakage cyclical fatigue and are able to with stand higher torque and angular deflection.

Description :

RACE 702 NI-TI TAPER 2%

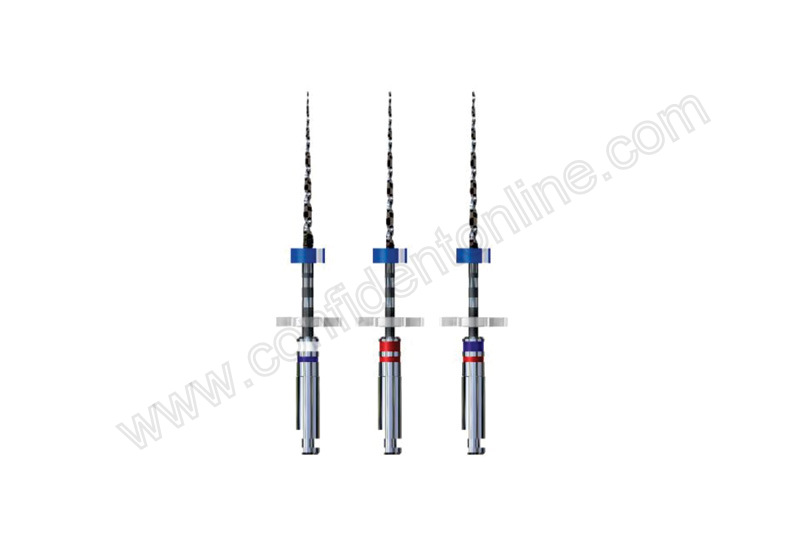

Thanks to their exclusive characteristics, only three iRace NiTi rotary instruments are needed to treat the majority of cases (straight, slightly curved or wide canals). The iRace sequence allows preparation up to a diameter of ISO 30/.04. With its ease of use and manipulation, it results in considerable time savings.

• 3 instruments: R1 15/.06, R2 25/.04 and R3 30/.04
• Lengths: 21, 25, 31 mm
• Recommended speed: 600 rpm
• Torque: 1.5 Ncm

Description :

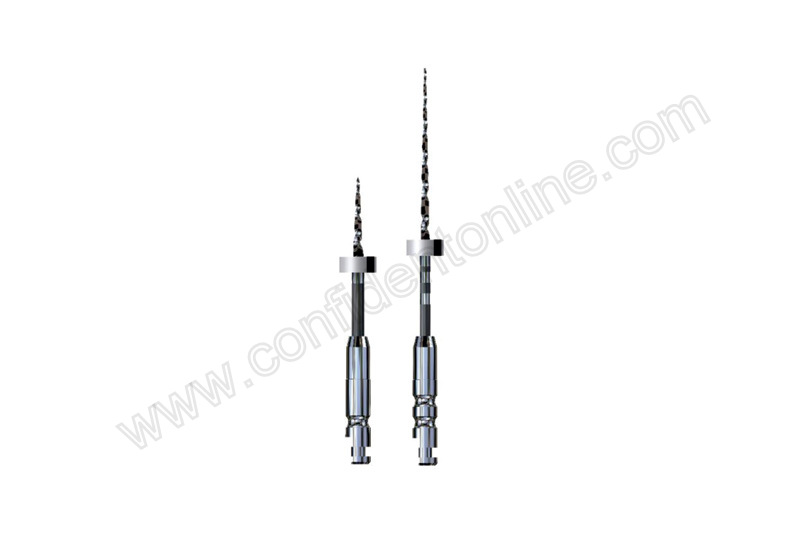

D-Race instruments are used to remove most of the old root-filling material, such as Gutta Percha, obturators or resin based material, from the canals.
The D-Race set consists of two NiTi files – DR1 and DR2. The first instrument, DR1, has an active tip for handling the root-filling material and is used in the first millimetres of the coronal and straight part of the canal. Once access is cleared with the DR1, the second instrument, DR2, is used to reach the WL. As this work puts a lot of strain on the instrument, it is intended for single use. Shaping will be carried out using dedicated FKG instruments.

• 2 instruments: DR1 30/.10, DR2 25/.04
• Lengths: DR1 15 mm, DR2 25 mm
• Speed: DR1 1000 rpm, DR2 600 rpm
• Torque: 1.5 Ncm
• DR2: single use

Product Code :	0170000SDQFK
Price (Incl. of Tax) :	1550
Package Contents :	1 Set :  (Set of 2 files) TAPER 10% NO-30,15 MM TAPER 4% NO-25 ,25 MM
Min Order :	2 Set
Available Qty :	116
	1550 1550 FKG D Race Add to Quote

Description :

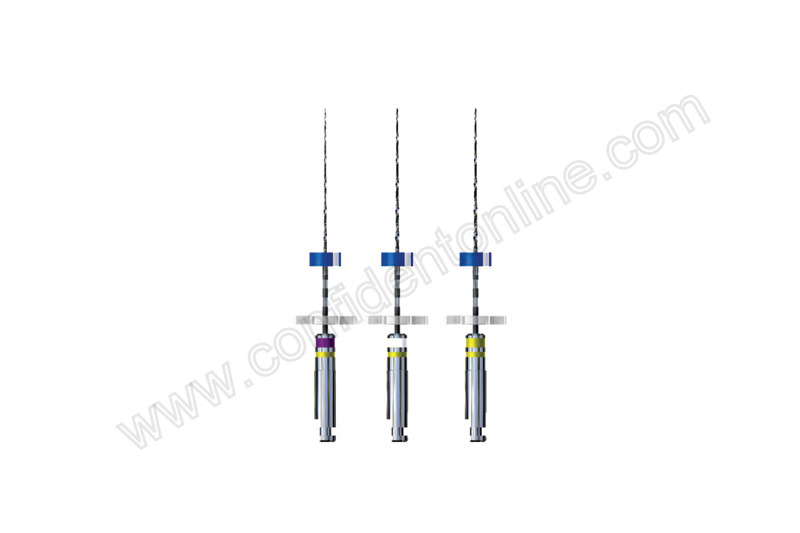

Used for the mechanized scouting of high curvature or S-shaped canals, ScoutRace is a sequence of three Race instruments with a taper of .02 and ISO diameters 10, 15 and 20. At first passage instruments, they are used after the working length (WL) has been determined using hand K-Files or an apex locator. Canal preparation will be completed using the instruments presented in the "Canal shaping and cleaning" chapter.

•  3 instruments: ISO 10/.02,15/.02 and 20/.02
•  Lengths: 21, 25, 31 mm
•  Recommended speed: 800 rpm (min. speed: 600 rpm)
•  Torque: 1 Ncm

Description :

3D canal shaping :

The XP-endo Shaper is the latest addition to the XP-endo range. It is a truly innovative shaping instrument which can be used to radically simplify endodontic, The need for 3D canal cleaning and the emphasis placed on less invasive treatments have increased in recent years. FKG is meeting this demand with the creation and release of the XP-endo Shaper. The MaxWire and Booster Tip technologies combine to make the XP-endo Shaper a « One File Shaper ». It has the ability to start shaping at ISO diameter 15 and to achieve ISO diameter 30, but also to increase the taper from .01 to at least .04. It allows to reach a canal shaping of minimum 30/.04 and this with only one instrument.

• Ø ISO: 30
• Taper: min. 4%
• Lengths: 21, 25, 31mm
• Recommended speed: 800 rpm
• Torque: 1 Ncm
• Delivered in a sterile blister. Single use

Description :

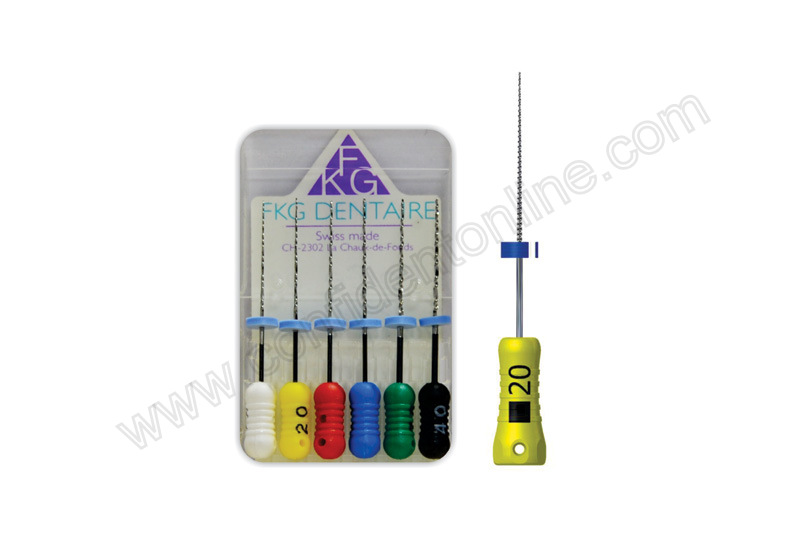

K (Kerr) files. K-Files are particularly well adapted for probing  and permeabilization during canal preparation. Made of stainless steel or NiTi, K-Files are more rigid instruments than reamers and thus more effective at penetration.

• Ø ISO 6, 8, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80 (Sst)
• Ø ISO 15, 20, 25, 30, 35, 40 (NiTi)
• Lengths: 21, 25, 31 mm
• Taper: 2%

Product Code :	15425015
Price (Incl. of Tax) :	635
Package Contents :	1 Set : 154,25MM, NO 15,HANDLE SMG (Set of 6 files)
Min Order :	5 Set
Available Qty :	84
	635 635 FKG K-Files Add to Quote

Description :

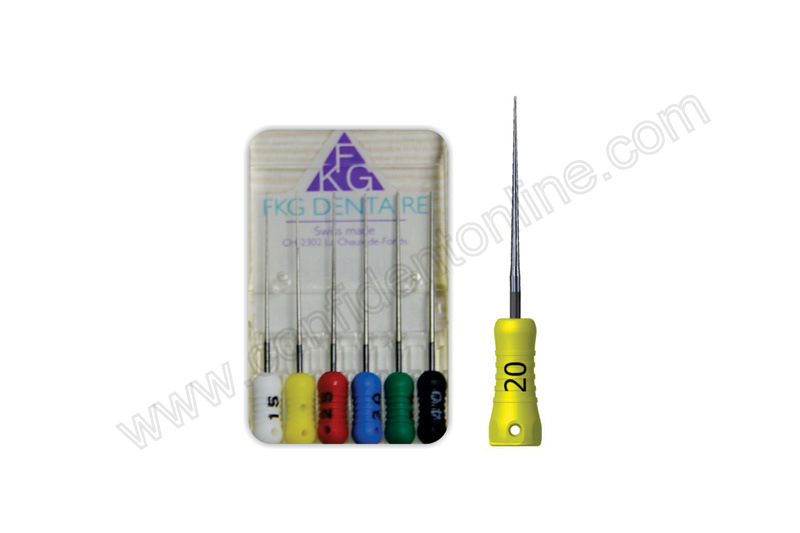

Pluggers are manual instruments with a flat tip used for vertical filling. They are available in steel or NiTi.

• Ø ISO 15, 20, 25, 30, 35, 40
• Taper: 2%
• Lengths: 21, 25 mm

Description :

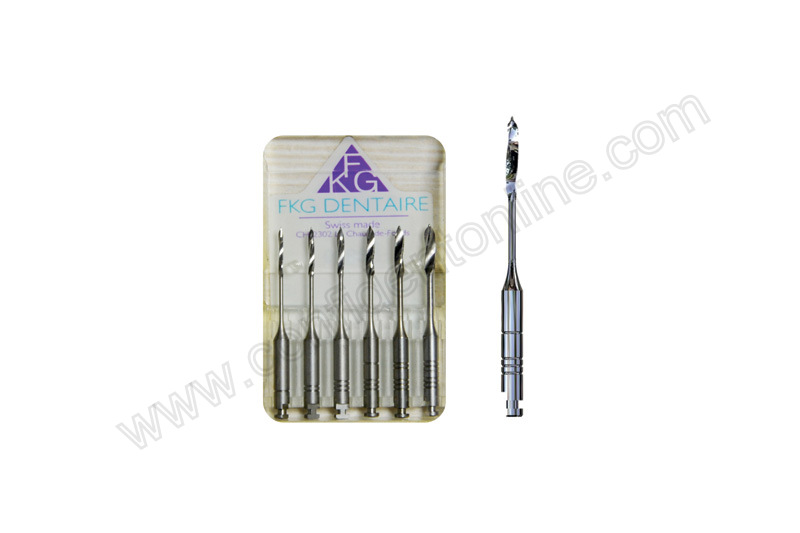

The Peeso instruments are reamers used to widen and straighten the coronary part of the canals allowing better access for shaping instruments. Their use is strictly limited to the straight portion of the canals.

The risk of perforation is significant if these instruments are used in a curved canal or when cutting laterally. With parallel cutting edges and a guiding rounded safety tip, they are more rigid and aggressive than the Gates.

•  Ø ISO 70, 90, 110, 130, 150, 170
•  Length: 19 mm
•  Recommended speed: 1200 rpm

Product Code :	F1321916
Price (Incl. of Tax) :	926
Package Contents :	1 Set : 132, 19 MM, NO.1-6, HANDLE GC (Set of 6 files)
Min Order :	5 Set
Available Qty :	150
	926 926 FKG Peeso Add to Quote

Description :

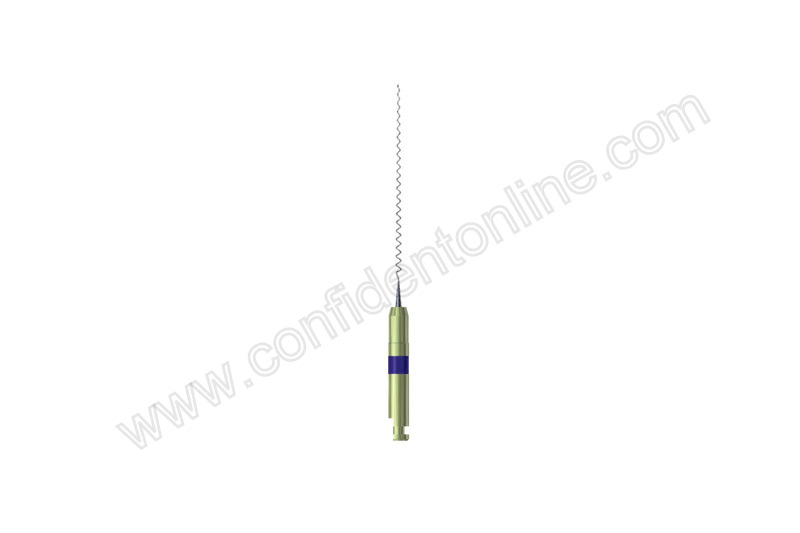

Paste fillers are used for distribution of the obturation paste and sealing cement into the canal and down to the apex or for the application of calcium hydroxide as a temporary medication.

•  Ø ISO 25, 30, 35, 40
•  Lengths: 21, 25, 29 mm

Product Code :	F180252540
Price (Incl. of Tax) :	316
Package Contents :	1 Set :  SENSIPAST 180, 25MM, NO.25-40 HANDLE GS (Set of 4 files)
Min Order :	10 Set
Available Qty :	150
	316 316 FKG Paste Fillers Add to Quote

Description :

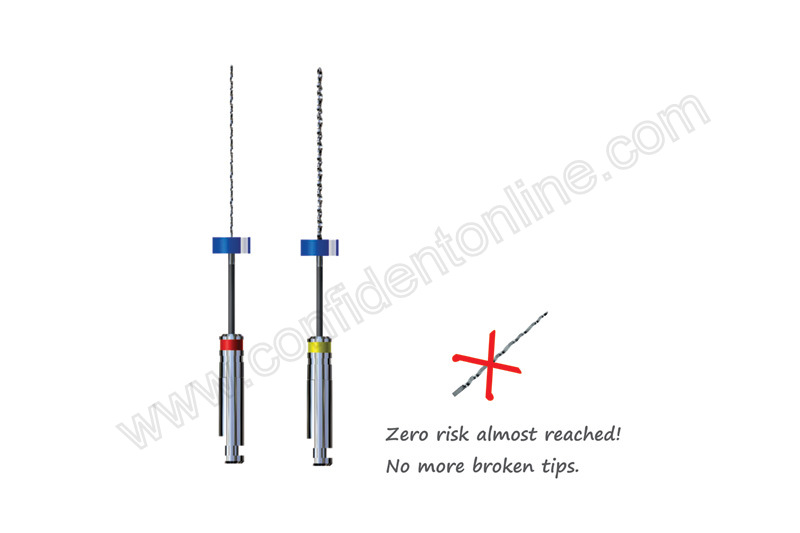

S-Apex is a NiTi rotary instrument with inverted taper, an ideal addition to every Endo sequence, ensuring greater safety in high curvature, narrow or sclerosed canals. If the breaking limit is exceeded, S-Apex, because of its inverted taper (ISO diameter D1 > D2) breaks or bends at its safety point, that is, 16mm from the tip. The broken part of the file can easily be removed from the canal with tweezers thanks to the exclusive anti-screwing in design which prevents any blockage or permanent fixation. It facilitates penetration of irrigant and disinfectant solutions up to the apex, even in curved and narrow canals. Finally, it creates an “apical stop”, permitting effective and reliable obturation

•  S-Apex instruments are used after access preparation with
•  PreRace instruments.
•  Pass the first S-Apex instrument ISO 15 as far as the apex,
•  then successively the following sizes until the desired size for
•  the final preparation of the apex is reached.
•  Canal preparation is completed using iRace or BioRace
•  sequences

Description :

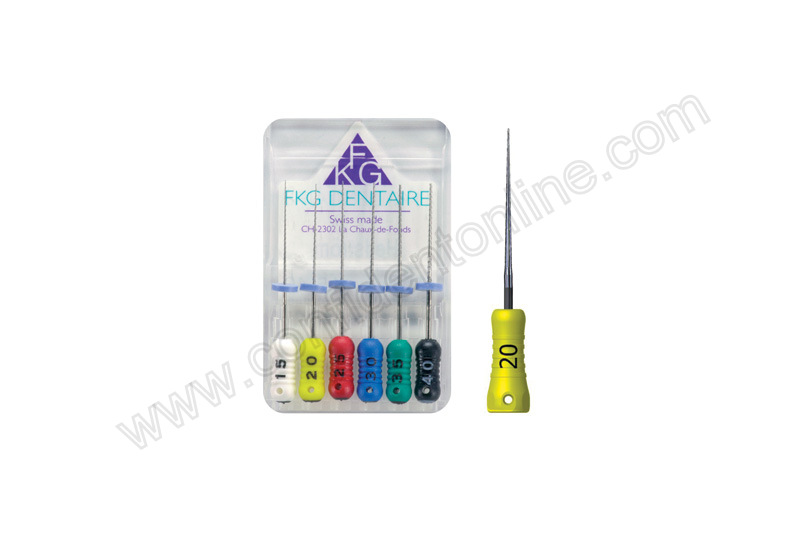

Spreaders are manual instruments with a conical tip used for lateral filling. They are available in steel or NiTi.

• Taper: 2%, Ø ISO 15, 20, 25, 30, 35, 40, Lengths 21, 25 mm
• Taper: 4%, Ø ISO 20, Length: 21 mm

Description :

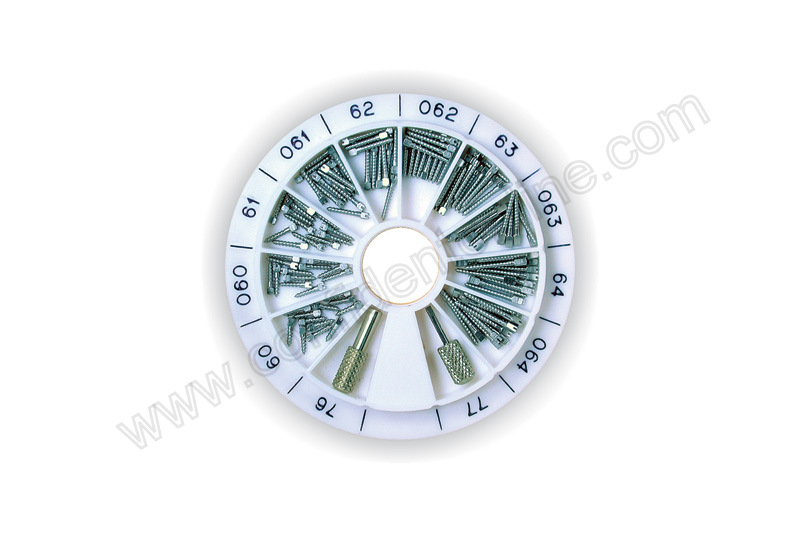

These come in steel or titanium and have a crosshead. A hollow wrench and a screwdriver are included. Choice of 10 different lengths.

Product Code :	F7101012
Price (Incl. of Tax) :	3154
Package Contents :	1 Set : Assortment 10 X 12 Pcs
Min Order :	1 Set
Available Qty :	53
	3154 3154 FKG Titanium Obturation Add to Quote
