Description :

This series of small steam sterilizer is sterilizing equipment developed for items resistant to high temperature such as surgical instruments, dressings, glassware, injection equipment

Instructions :

Technical Info :

• Sterilizer chamber (diameter x depth) - 245mmx465mm(23L)
• Power Supply - 220V/AC/50Hz
• Sterilization temperature/Pressure : 121/1.0~1.3Bar / 134/2.1~2.3Ba
• Fuse tube - T15A
• The storage tank volume - 3.5L
• Ambient pressure - +5°~ +40°

Features :

LCD Display

LCD display function complete, can set up 15 national languages to meet customers needs with power off after the prompt, machine fault prompt, and faylt memory, Automatic atmosphic detection, history query, unauthorised disabled etc

Super Vaccum Pump

The working efficiency is fast the limit vaccum is up to 90KPA  and temperature resistance is up to 90°c

Imported Vaccum Pump

Optimal, Japan imported mute vaccum pump, light sound, circulating vaccum principle, small volume fast working efficiency, stable

Printer

In accordance with the regulation of the state drug administration, print disinfectant data function, reflect date, time, operation data (like working time, pressure temperature etc)

Product Code :	NH010
Price (Incl. of Tax) :	127500
Package Contents :	Instrument tray - 3 Pcs Instrument rack -1PC Operation manual -1PC Handle tongs - 1PC 1.5m water-outlet pipe -1PC  Water outlet connector - 2PCS  Measuring cup  -  1PC  Sealing ring -  1PC  Power cable - PC
Min Order :	1 set
Available Qty :	18

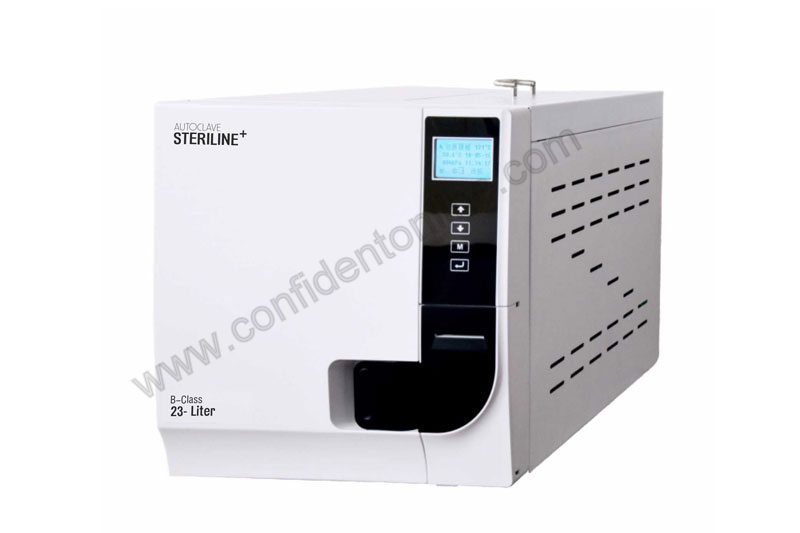

	127500 127500 Sterline B CLASS AUTOCLAVE WITH PRINTER 23L STERILINE + & WATER DISTILLER PLANT Add to Quote

Description :

The sterilization of all wrapped or non - wrapped, solid, hollow load products type A and porous products or related articles.

The sterilizer can be used for dental clinic, laboratory, surgical room and steam, cosmetic hospital and so on, by doctors and professionals.

Instructions :

Technical Info:

• Power Supply - 220V - 230V, 50Hz
• Rated Power - 1500VA
• Operation Temperature - 5 - 40°C
• Atmospheric Temperature - 70kPa - 106kPa
• The Board affording Weight - 4000 N/m2
• Chamber Volume : 18 L (ø245 x 352 mm)
• Loading Size : 18 L (198 x 204 x 285 mm)

Features :

Temperature Protection:

• Temperature Protector – Cut of Power when the steam Generator temperature is too High
• Heating Ring – Cut off Power when the heating ring temperature is too High

Electricity Protection:

• Double Fuse – Cut off the Power when the connected power is too High or unstable
• Electronic Filter -  Filter the Electromagnetic interference during working
